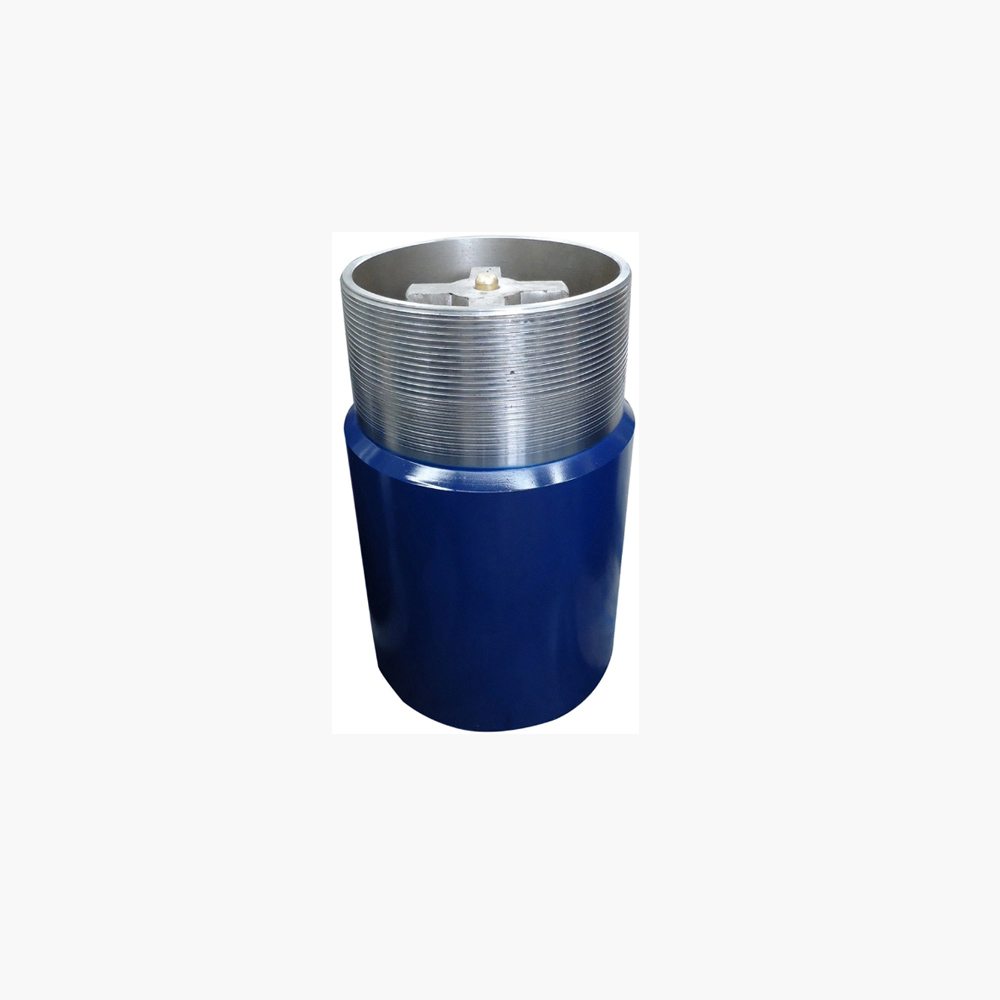

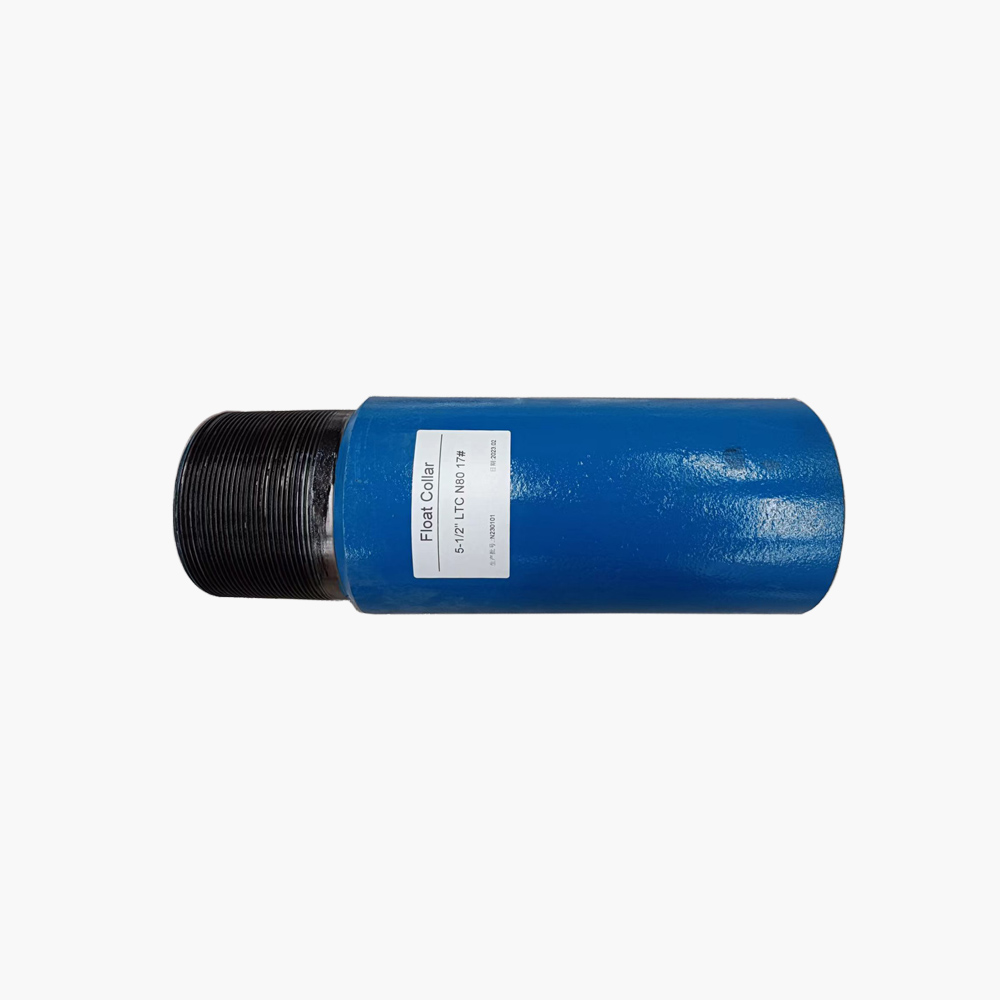

Float collar and float shoe are one of the coventional necessary accessories of bottom casing string,usually connected onto the bottom of casing string,used to guide casing string into well smoothly,to prevent the revverse flow of cement slurry and realize coagulation after cementation pressure release,relieve the load of derrick and control the cemment plug height.The internal components of the device made of allumnium alloy which is well drillable.After use 9-5/8inch float collar&shoe cementing the well,can drill the thrid time.
Specifications
| Type | OD | DN | Positive Pressure(Mpa) | Reverse Pressure(Mpa) | Thread | Standard used |
| 5 1/2″ | φ160 | φ124.3 | 35 | 35 | LCSG | SY/T 5618-2016 |
| 7″ | Φ200 | φ159 | 35 | 35 | LCSG | SY/T 5618-2016 |
| 9 5/8″ | φ270 | φ225 | 35 | 35 | LCSG | SY/T 5618-2016 |
| 13 3/8″ | φ365 | φ325 | 21 | 21 | BTC | SY/T 5618-2016 |
Use method and attentions
- 1 Clean the thread of casing coupling,coat with thread compound,then connect the float collar and casing coupling with hydraulic clamp.
- 2 Then downhole the casing,when insert the casing into a predetermined depth,wait for the cement solidification.
- 3 In the process of lower casing,attetion should be paid to control casing downhole speed,in case pressure generated by faster release of casing fracture weak stratum.
- 4 Control the pressure difference between internal and external casing hydrostatic fluid,maximium empty depth no more than 600meters.
- 5 When storage,make sure to coat anti-rust oil on surface of threads,when move,prevent thread damage.
