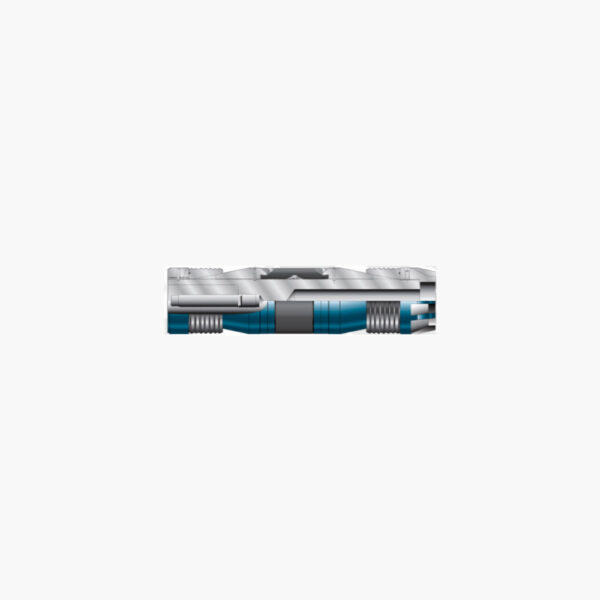

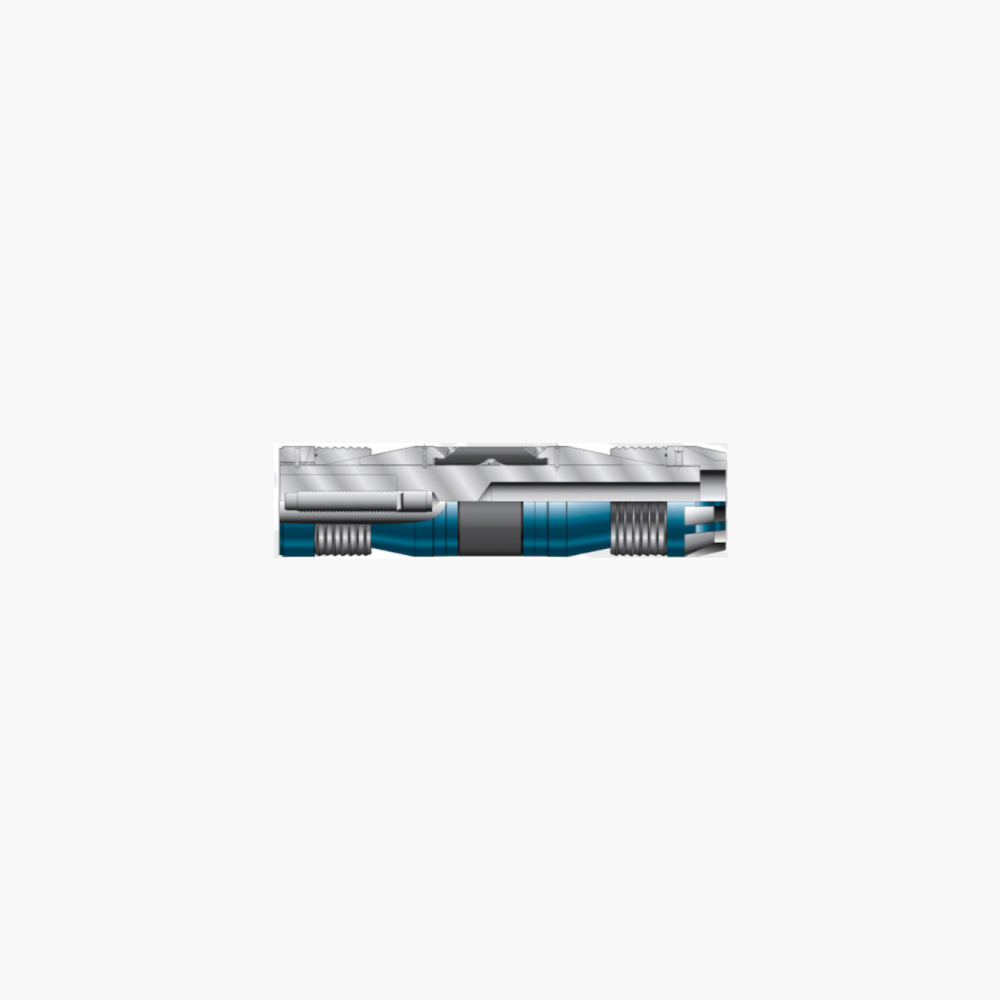

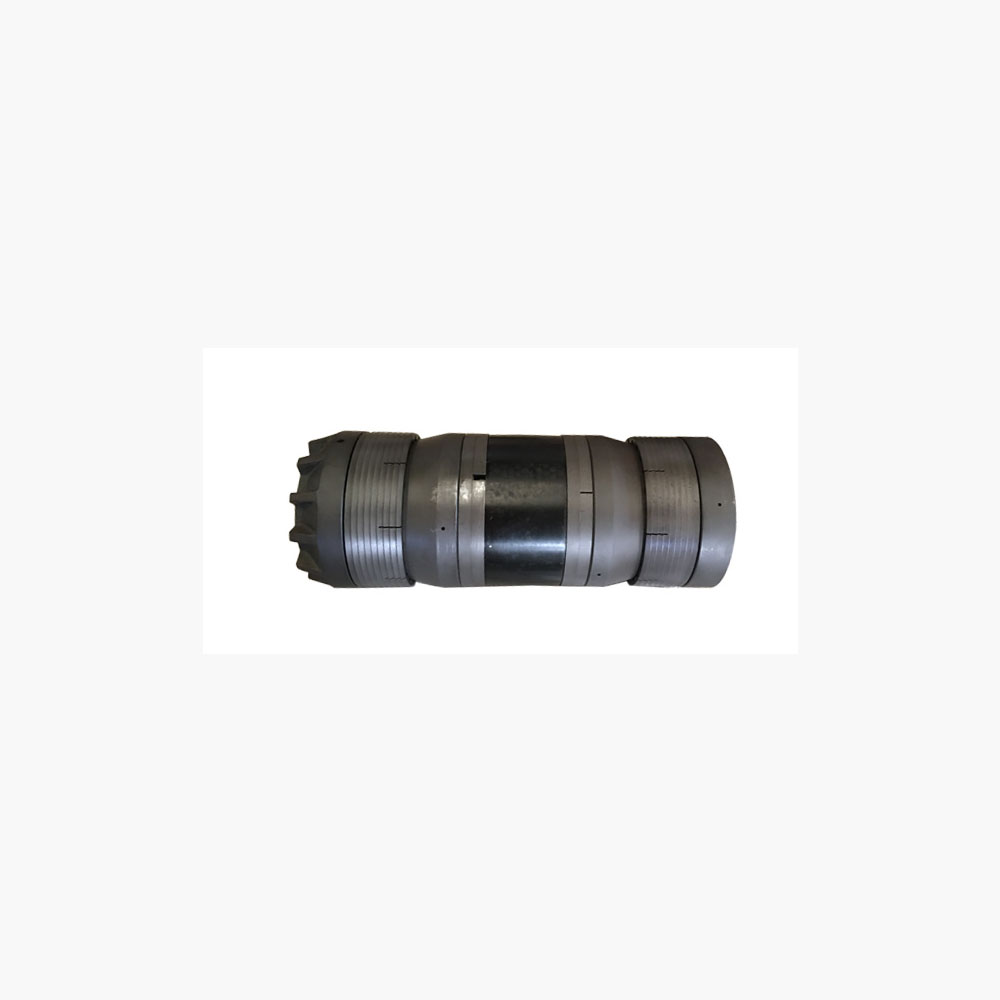

The Model CWB Wireline Set Drillable Cast Iron Bridge Plug is a compact and economical unit engineered for fast running downhole on electric wireline and easy drill out.
Specifications
|
PN# |
Casing OD |
Casing Wt |
Setting Tool |
Setting Kits |
Tool OD |
Release Force |
|
(in) |
(lbs/ft) |
(in) |
(in) |
(lbs) | ||
|
D22-0237-008 |
2 3/8 |
4.0-5.8 |
# 5 |
/ |
1.75 |
9,000 |
|
D22-0287-008 |
2 7/8 |
6.4-6.5 |
/ |
2.22 | ||
|
D22-0351-008 |
3 1/2 |
5.7-10.3 |
D22-0351-100 |
2.75 | ||
|
D22-0350-008 |
3 1/2 |
12.8-15.8 |
/ |
2.43 |
13,000 | |
|
D22-0400-008 |
4 |
5.6-14 |
# 10 |
D22-0400-100 |
3.14 |
20,000 |
|
D22-0450-008 |
4 1/2 |
9.5-16.6 |
D22-0450-100 |
3.59 |
33,000 | |
|
D22-0500-008 |
5 |
11.5-20.8 |
# 20 |
D22-0500-100 |
3.93 | |
|
D22-0550-008 |
5 1/2 |
13-23 |
D22-0550-100 |
4.31 | ||
|
D22-0575-008 |
5 3/4 |
14-25.2 |
D22-0575-100 |
4.7 | ||
|
D22-0662-008 |
6 5/8 |
17-32 |
D22-0662-100 |
5.37 |
50,000 | |
|
D22-0700-008 |
7 |
23-35 |
D22-0700-110 |
5.68 | ||
|
D22-0701-008 |
7 |
17-23 |
D22-0701-110 |
6 | ||
|
D22-0762-008 |
7 5/8 |
20-39 |
D22-0762-100 |
6.31 | ||
|
D22-0862-008 |
8 5/8 |
24-49 |
D22-0862-100 |
7.12 | ||
|
D22-0962-008 |
9 5/8 |
29.3-58.5 |
D22-0962-100 |
8.12 | ||
|
D22-1075-008 |
10 3/4 |
32.7-60.7 |
D22-1075-100 |
9.43 | ||
|
D22-1176-008 |
11 3/4 |
38-60 |
D22-1176-100 |
10.43 | ||
|
D22-1175-008 |
11 3/4 |
60-83 |
D22-1175-100 |
9.94 | ||
|
D22-1337-008 |
13 3/8 |
48-84.5 |
D22-1337-100 |
11.88 | ||
|
D22-1600-008 |
16 |
65-118 |
D22-1600-100 |
14.12 | ||
|
D22-2000-008 |
20 |
94-133 |
D22-2000-100 |
18.37 |
FEATURES
- Positively secured packing element and one-piece slips combine to resist premature setting due to well debris or rough handling and assures protection from the hazards of high-speed running in the well.
- The flat metal backup rings prevent extrusion of the rubber at high pressure and temperature. Because of their design, the metal-to-metal contact developed by these backup rings is made more secure by pressure increases.
- An internal ratchet lock ring retains the dynamic force induced in the retainers during the setting operation. This simple mechanism assures continued compression of the packing elements regardless of pressure differentials.
- Case-hardened, one-piece slips, designed to bite casing hardness up to P110, are located at each end of plug – final assurance of plug pack-off security. When the need arises, these slips are easily drilled out.
