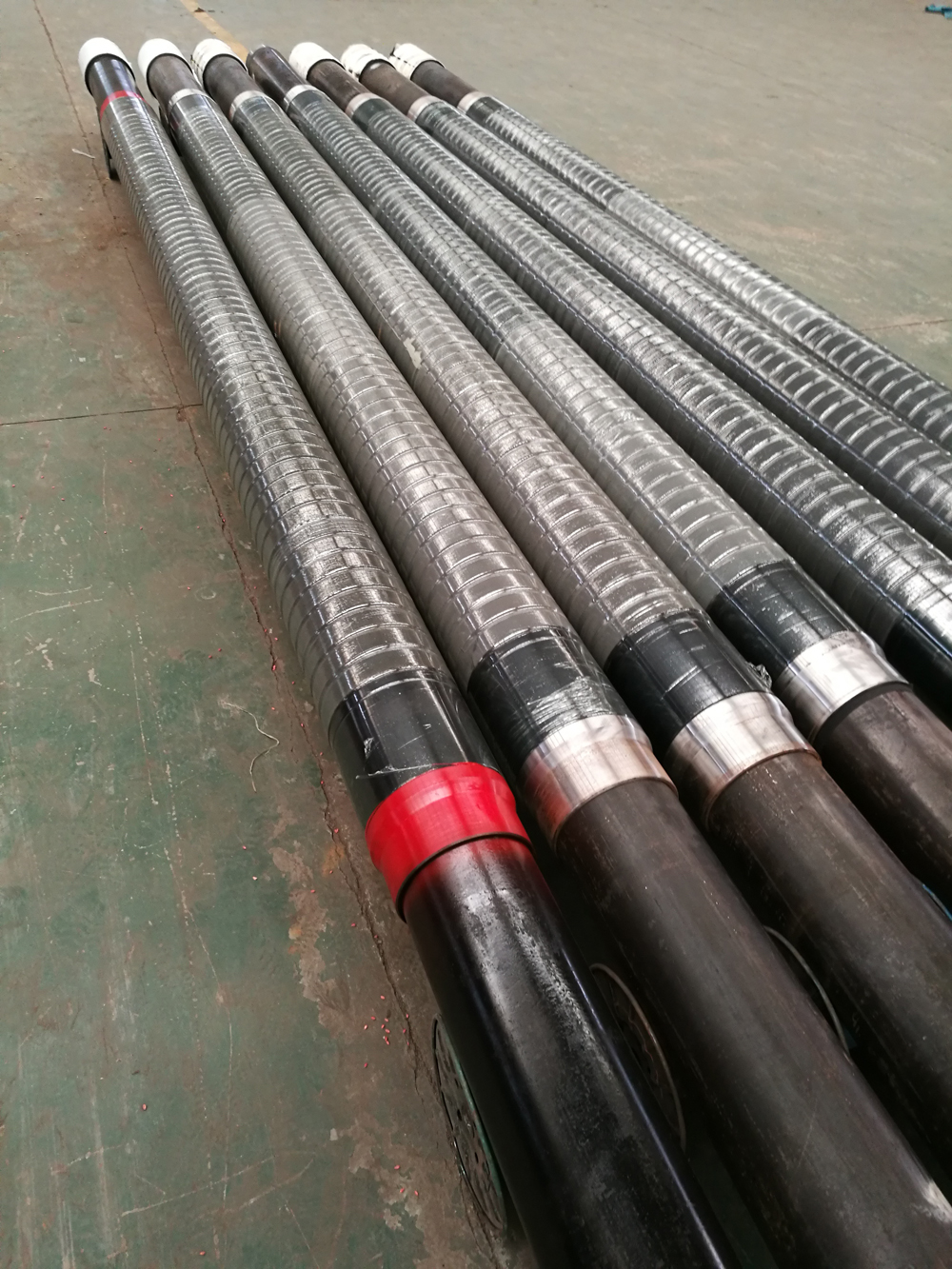

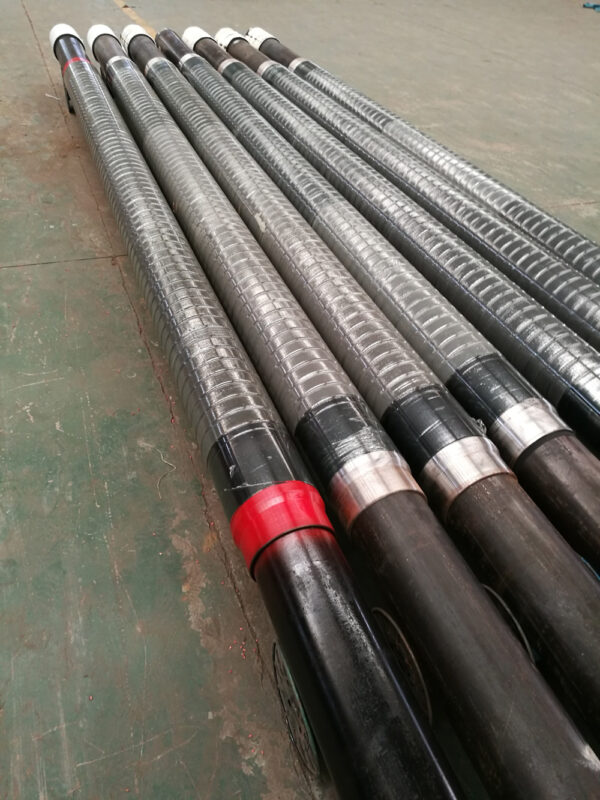

Recoverable liquid-expansion packer is a kind of rubber that can be expanded in liquid contact with oil-based/water-based media, and the oil-water molecules enter into the rubber through capillary diffusion and surface adsorption and other physical actions, forming a strong binding force with some molecules in the polymer, and the molecular structure in the rubber will undergo elastic deformation after continuously absorbing the media. When the anti-deformation force and the permeability pressure of the medium reach a relative balance, the deformation reaches a stable state, that is, the effect of expansion plugging and sealing is achieved.
Structure

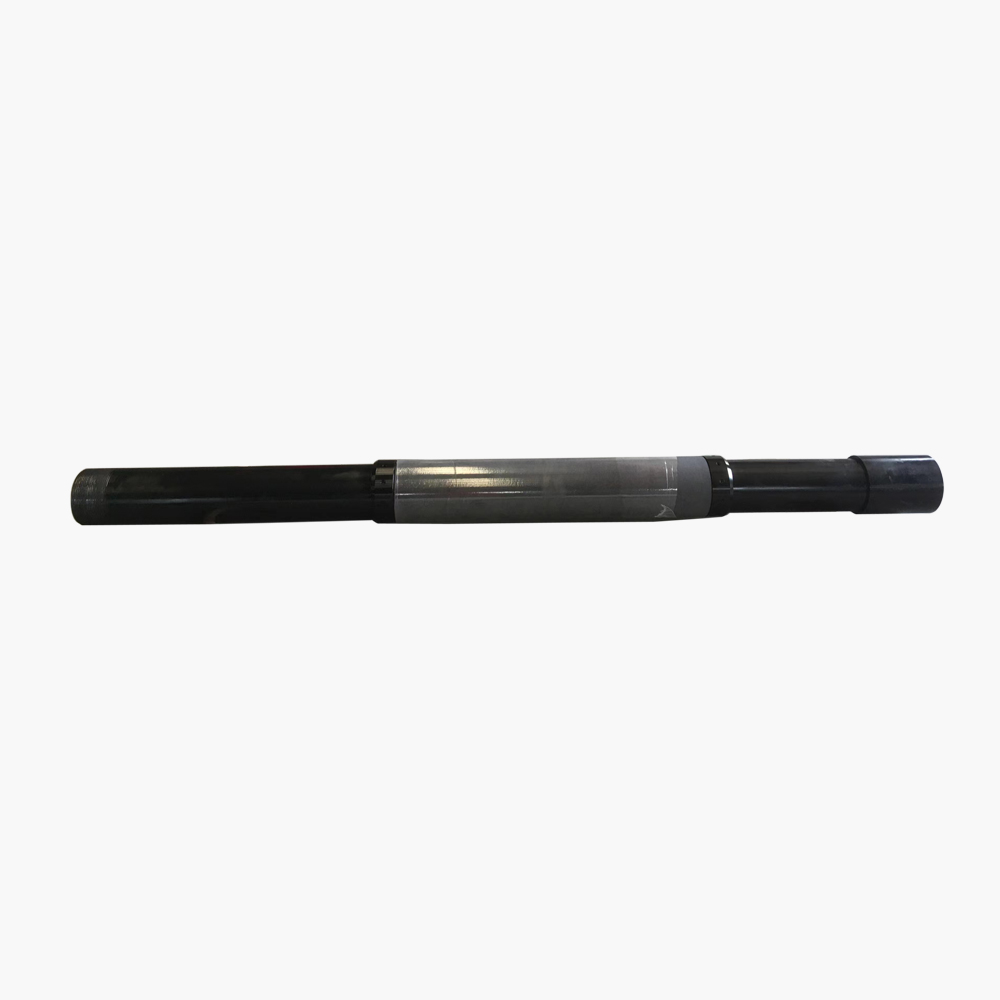

The recyclable liquid expansion packer mainly consists of an upper joint, a central pipe, an upper fixed end joint, a sealing element, and a lower fixed end joint.
Technical parameters
| Specification | Nominal diameter
mm | Maximum outer diametermm | Total length
mm | Glue barrel length
mm | Applicable casing | preset pressure
Mpa | Temperature resistant
℃ | Connection thread |
| 2 7/8＂ | 73 | 114 | 1000-10000 | 300-3000 | 5 1/2＂ | 70 | 120 | 2 7/8＂NU |
| 3 1/2＂ | 89 | 150 | 1000-10000 | 300-3000 | 7＂ | 70 | 120 | 3 1/2＂NU |
| 4 1/2＂ | 114 | 210 | 1000-10000 | 300-3000 | 9 5/8＂ | 70 | 120 | 4 1/2＂LC |
| 5＂ | 127 | 210 | 1000-10000 | 300-3000 | 9 5/8＂ | 70 | 120 | 5＂LC |
| 5 1/2＂ | 140 | 210 | 1000-10000 | 300-3000 | 9 5/8＂ | 70 | 120 | 5 1/2＂LC |
| 7＂ | 178 | 210 | 1000-10000 | 300-3000 | 9 5/8＂ | 70 | 120 | 7＂BC |
Product features
The recoverable liquid expandable packer can expand continuously, track the changes of the well bore and repair itself. It is suitable for high temperature and high pressure wells and is easy to install. The fluid-expansive packer is often used in intelligent completion, screen completion, gravel packing, stimulation and injection increase, water separation and oil recovery and other various completion schemes.
- The underground environment is automatically set, and the on-site construction is simple and convenient, with minimal risk;
- It is suitable for multistage continuous use and realizes multistage oil production and water injection wells. It has the unique technical advantages of easy unsealing, few metal parts, small outer diameter and difficult sticking;
- It has good sealing effect and is not limited by casing and wellbore conditions. It has a wide application prospect in old wells, cased wells, slim holes, open hole wells and screen pipe completion;
- It has the ability of self-repair and long service life;
- It can be used instead of conventional compression and expansion packers or in combination with conventional packers for layered oil production and layered water injection wells;
- It can be used in intelligent well completion to realize the nondestructive cable crossing packer, that is, the underground cable and hydraulic control pipeline can be disconnected and connected again, which can greatly reduce the risk of intelligent well completion construction and extend the construction life of the cable.
